Full bleed printing
We recommend a 0.125" bleed area outside of the trim line and a 0.25" quiet area inside of the trim line. Some products have different bleed requirements, but we’ll cover those exceptions below.
While you don’t need to include visible bleed lines in the final design that you submit to be printed, they should be taken into consideration during your design process. Incorporating bleed helps to prevent unwanted white edges, keep important elements of your design from being chopped off or hidden in the folds of your books pages.
Incorporating a quiet area inside the trim line prevents important elements of your design from being placed too close to the edge of the paper
Most of the 0.125" bleed area that extends out from the trim line is going to be cut off, but you should make sure your design fills the bleed area.
If you don’t add bleed to your project, you can be left with an unsightly line of white paper that doesn’t have any ink on it if the cutting blade falls a fraction outside of the trim line.
Once the bleed area has been created in the application the actual content of the page that touches the trim edge must be extended in to the bleed area.
Regardless of the size of your product, the bleed size is usually 0.125". There are, however, some exceptions to this rule, such as casebound book covers. Those exceptions are discussed below.

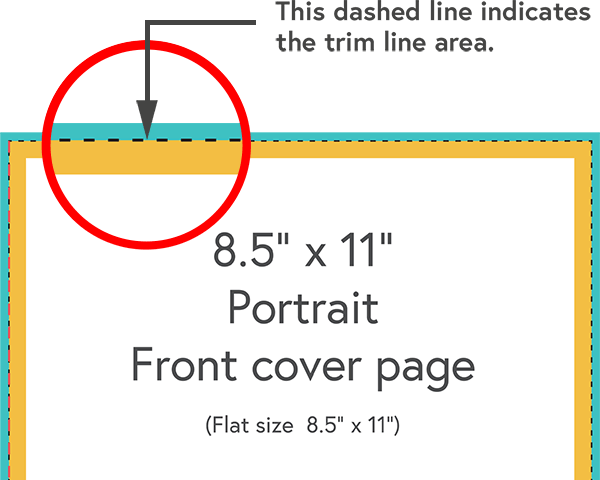

Around the edge of the page you’ll notice a dotted line that indicates where we’ll trim your paper. During the printing process, it’s possible for manufacturing variance to occur, which causes the cutting blade to be off by the tiniest margin. While this is acceptable within industry standards, it does mean that your paper might be trimmed just inside or outside of the trim line.
This is why we have bleed and quiet areas, to keep your critical design elements safe.
The 0.25" quiet area extends inwards from the trim line. It serves two purposes. Like the bleed area, it’s possible for the cutting blade to stray by the tiniest fraction away from the trim line and cut your paper into the quiet area. But its main purpose is to help you keep important design elements, like text and graphics, away from the edge of your paper, so that when your product is printed, your design is pleasing to the eye.
The recommend quiet area is usually 0.25", but can be larger for perfect bound, wiro bound and casebound books.
The above template is perfect for straightforward printing jobs, like staple bound booklets and single sheet leaflets or posters. For more complex printing needs, such as perfect bound, case bound, or wiro bound products, you may need larger bleed areas and quiet areas.
Example of a perfect bound template

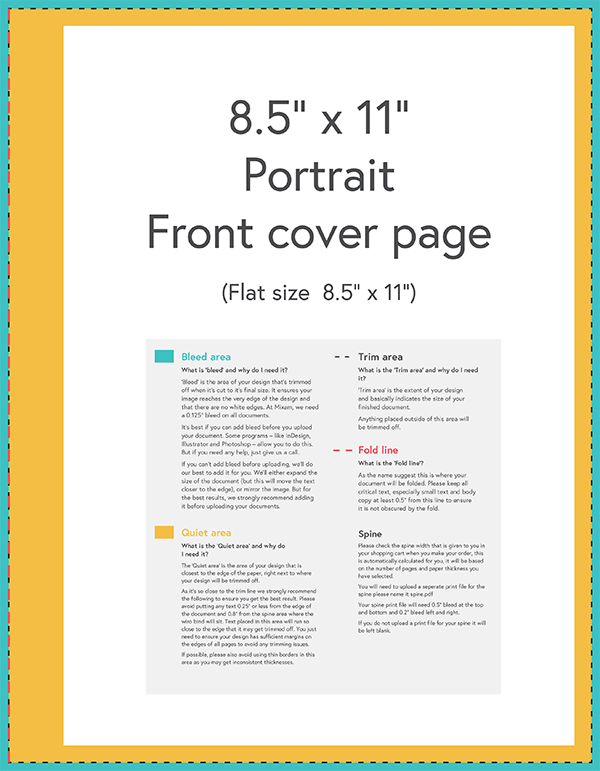

Example of a wiro bound template
Example of a hardcover template
Extending your design

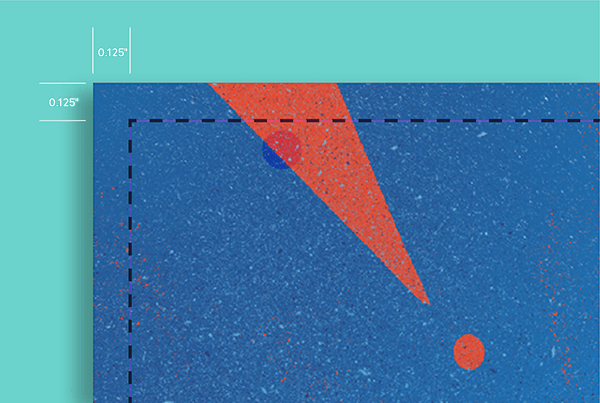

Adding bleed is extremely important to make sure your final product looks polished and professional. Thankfully, doing so is really quite easy. All you have to do is add an extra 0.125” area outside the edge of your page. Then extend your design past the trim line to completely cover the bleed area.
When working from InDesign, select “Use Document Bleeds” in the Export PDF dialog box. Otherwise your design will be exported without the added bleed.
We have an extensive selection of templates for many sizes and binding types in our product range. The templates are all free to download and have detailed explanations to help you create the perfect print-ready files.
